DP-103 Manometer Digital Gas Pressure Tester Differential Pressure Gauge HVAC Air Pressure Meter with Backlight Data Record Function

$ 32.99

FEATURES: 【High Accuracy】 Measurement range: ±2.000psi; Accuracy: ±0.3%FSO (at 25°C) ; Repeatability: ±0.2% (Max ±0.5%FSO); Linearity/Hysteresis: ±0.29%FSO. 【12 Selectable Units toggle】 Easily toggle between Psi, kPa, Pa, Kgfcm2, ozin2, Bar, mbar, inHg, mmHg, inH2O, ftH2O and cmH2O 【Data Record Function】 this Manometer would be record 99pcs data with time stamp, which help to easier to …

Out of stock

Download English User Manual
Download German / Deutsch User Manual
Download Italian / Italiano User Manual
Download Japanese / 日本語 User Manual
Download Spanish / Español User Manual
There is no software available for this item.
Manometer Specifications
Pressure Range ±2.000 Psi
Units of Measurement Pa, psi, kgfcm2 , bar, inH2O, ftH2O, inHg, mmHg, ozin2 , mbar, cmH2O, and kPa
Accuracy ±0.3% FSO (at 25°C)
Repeatability ±0.2% (Max±0.5%FSO)
Linearity / Hysteresis ±0.29% FSO
Data Storage 99 Groups
Response Time 0.5 Seconds
Out-Of-Range Indicator Hi or Lo
Automatic Power Off Conditions No Operation For 10 Minutes
Operating Conditions 0 to 50°C (32 to 122°F)
Storage Conditions -10 to 60°C (14 to 140°F)
Power Supply 3x 1.5V AAA batteries
Dimensions 165mm x 70mm x 33mm
Weight 150g (Without Batteries)

FEATURES:

【High Accuracy】 Measurement range: ±2.000psi; Accuracy: ±0.3%FSO (at 25°C) ; Repeatability: ±0.2% (Max ±0.5%FSO); Linearity/Hysteresis: ±0.29%FSO.

【12 Selectable Units toggle】 Easily toggle between Psi, kPa, Pa, Kgfcm2, ozin2, Bar, mbar, inHg, mmHg, inH2O, ftH2O and cmH2O

【Data Record Function】 this Manometer would be record 99pcs data with time stamp, which help to easier to analyze the data

【Multi-Functional】Measure Differential pressure, Data Hold, MAX/MIN/Average, Large LCD backlight, Low battery Alarm Functions

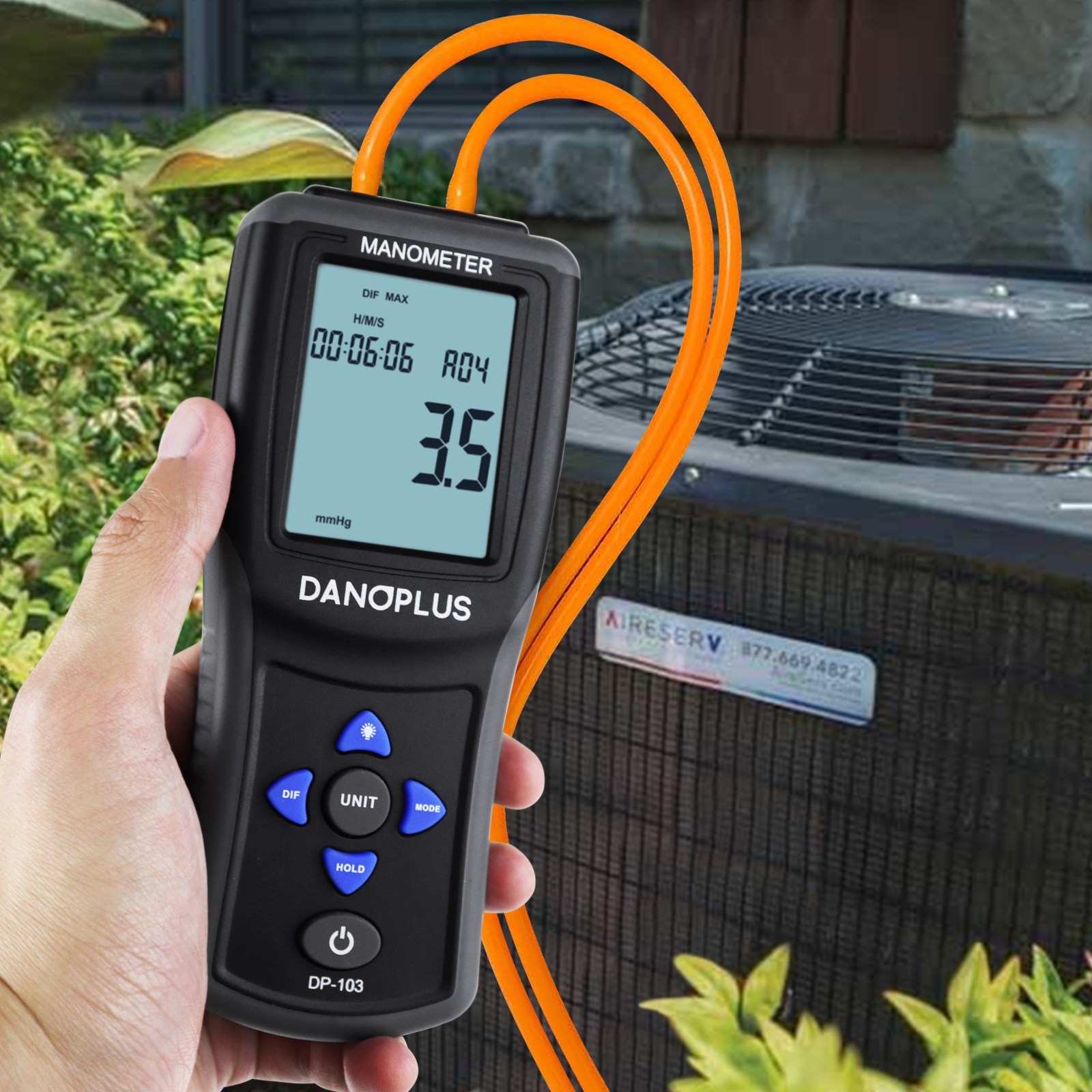

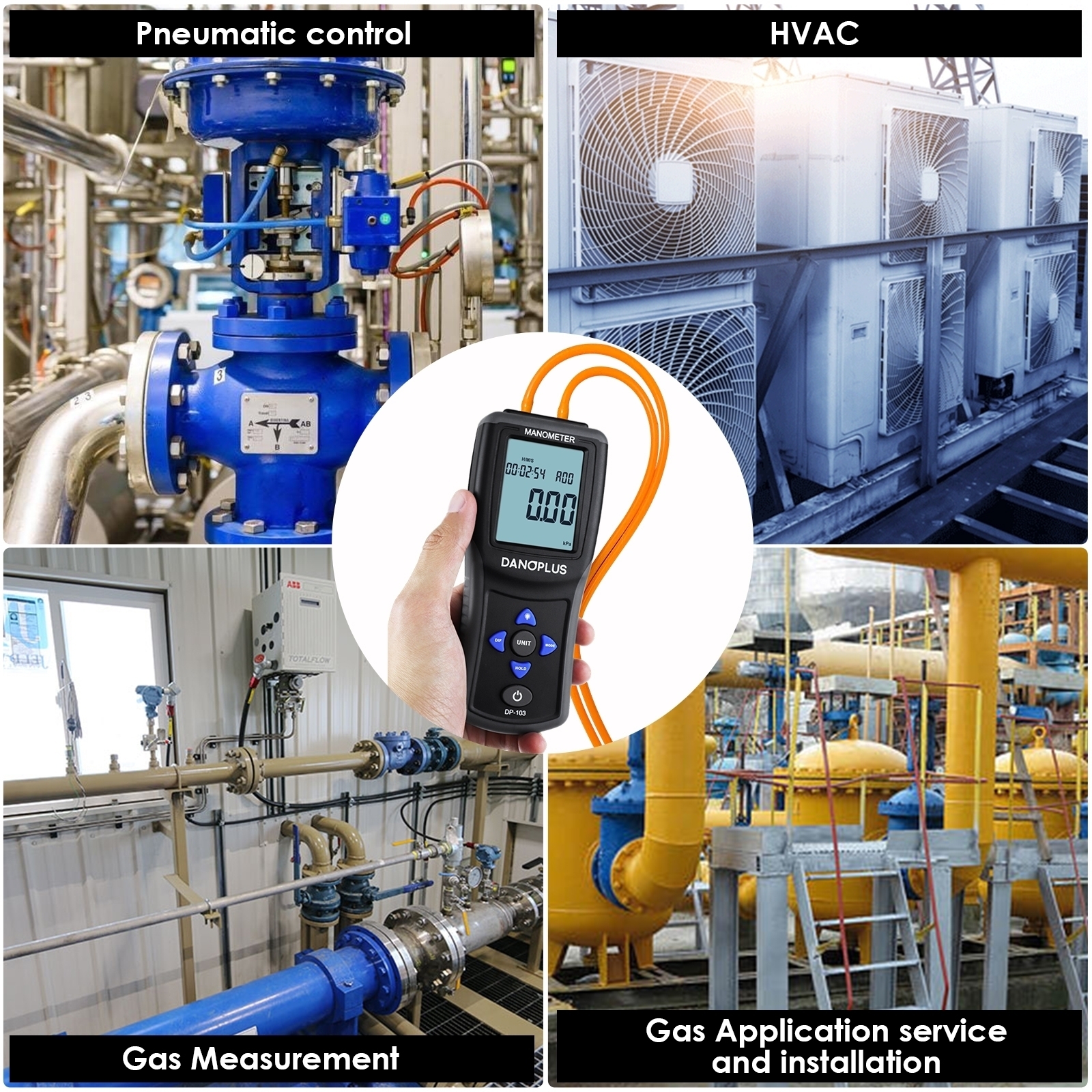

【Wide Applications】This high quality manometer is suitable for gas measurement systems, which measuring the air and ventilation system, calibrating and trouble shooting of gas pressure systems, e.g. HVAC, gas appliance repair and installation, laboratory testing, etc.

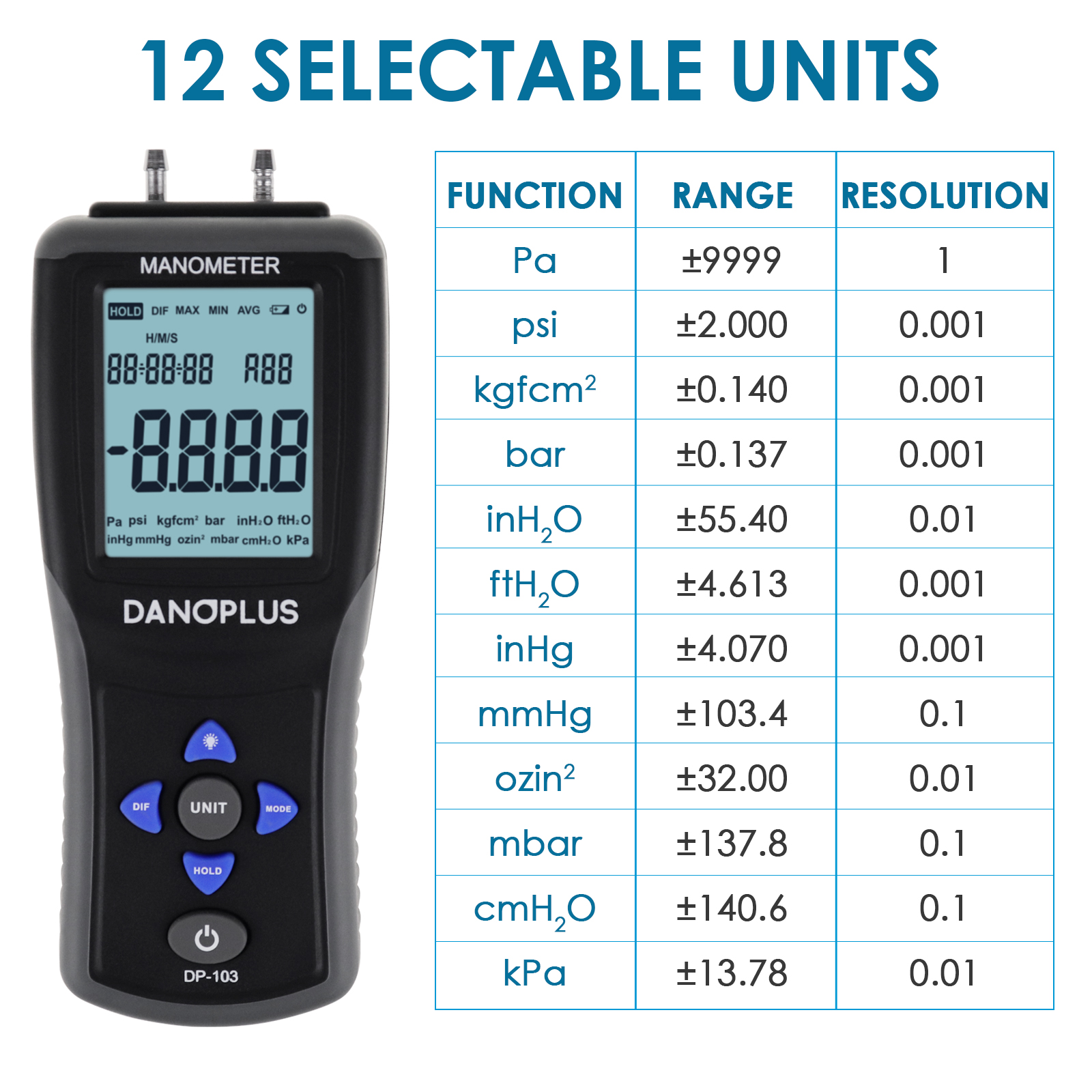

RANGE SPECIFICATIONS

Function Range Resolution
Pa ±9999 1
psi ±2.000 0.001
kgfcm2 ±0.140 0.001
bar ±0.137 0.001
inH2O ±55.40 0.01
ftH2O ±4.613 0.001
inHg ±4.070 0.001
mmHg ±103.4 0.1
ozin2 ±32.00 0.01
mbar ±137.8 0.1
cmH2O ±140.6 0.1
kPa ±13.78 0.01

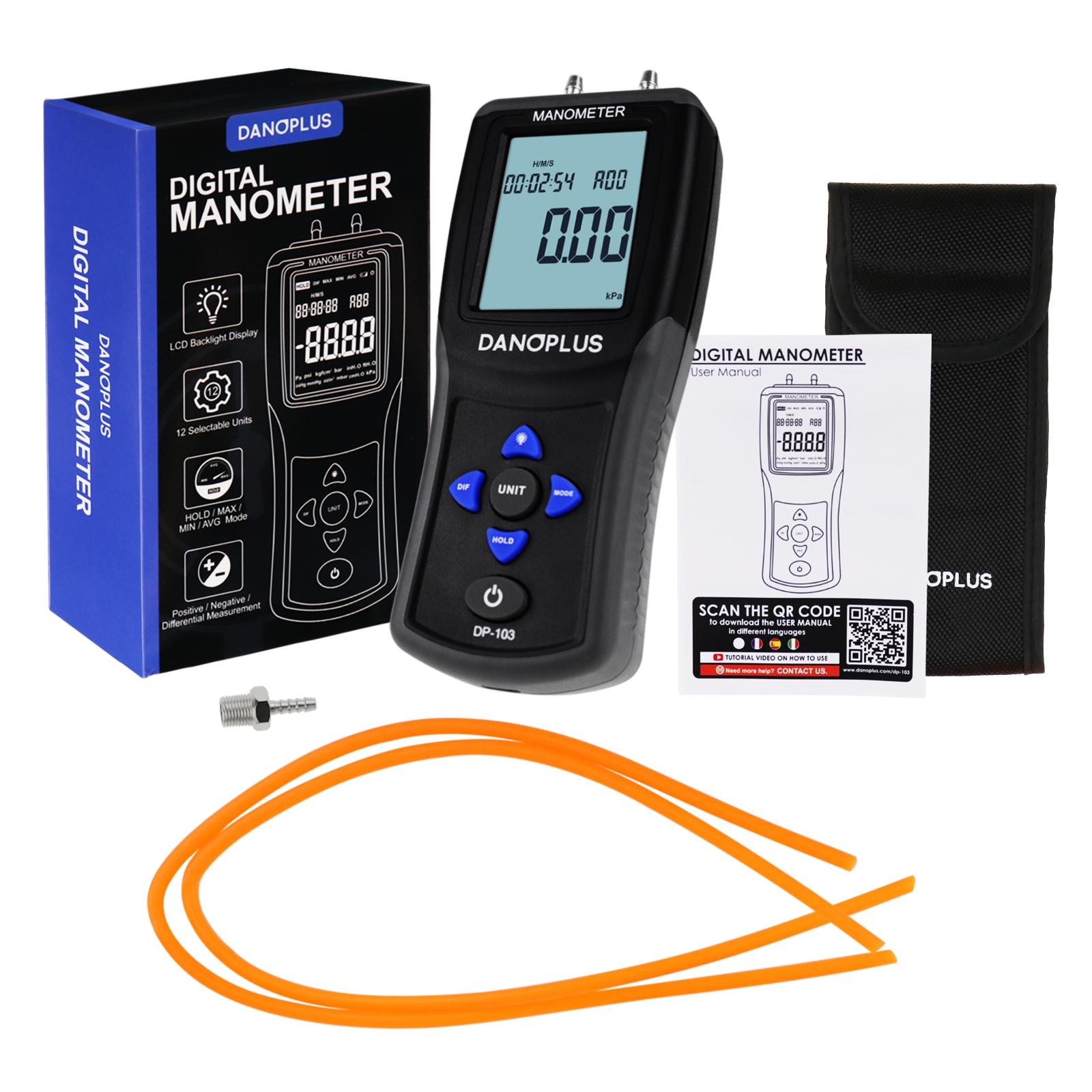

SET INCLUSIONS:

  • 1x Manometer
  • 2x Rubber Tubes (50 cm)
  • 1x Converter
  • 1x Carrying Bag
  • 1x User Manual (English)
  • 3x AAA Batteries
  • Standard Packaging Box
