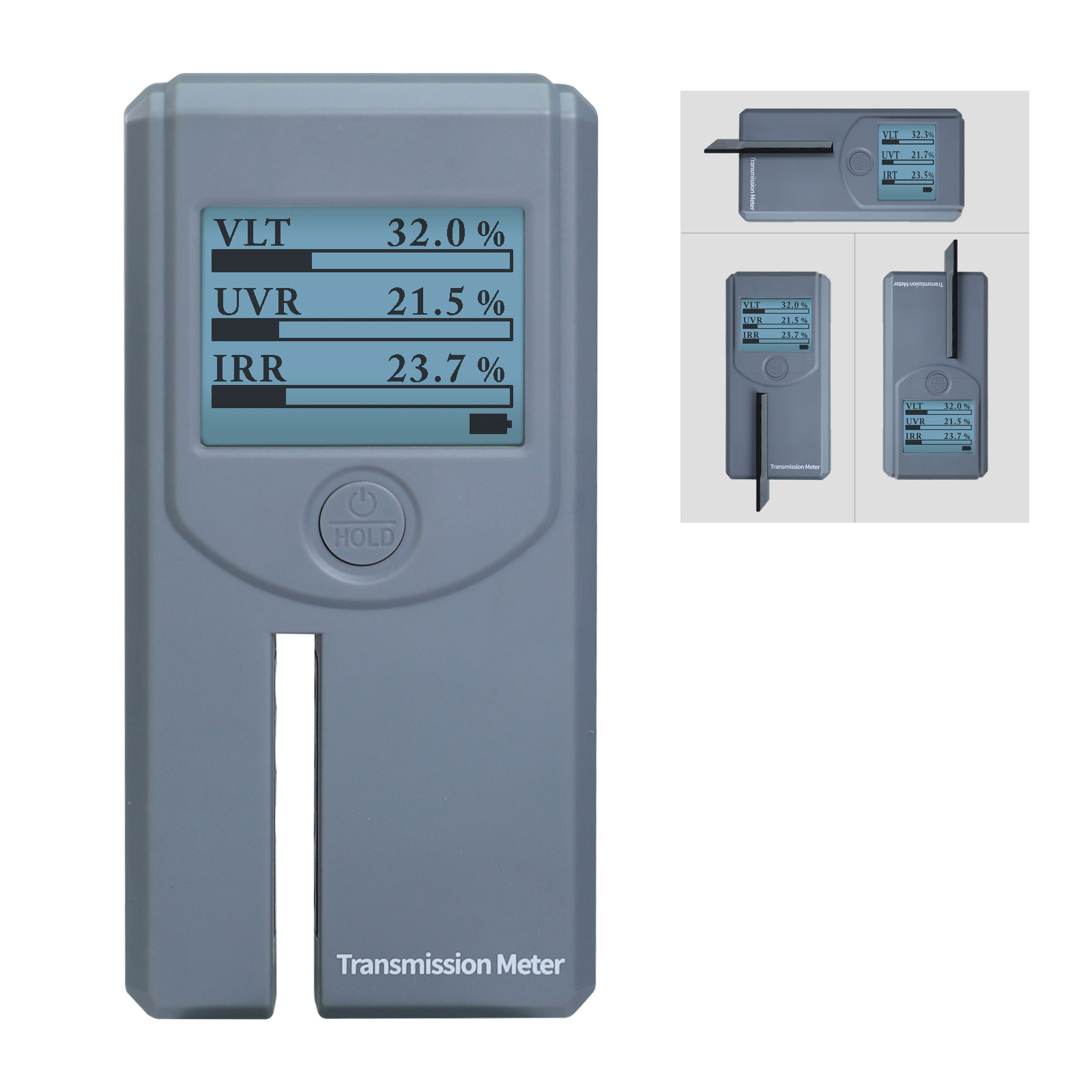

DP-404 Tint Meter Portable Window Tint Meter Automatic Rotating Screen Window Tint Tester, Automatic Calibration, Measuring VL(Visible Light) UV IR Transmittance and Rejection of Windows, Solar Window Film
$ 99.99
✅【Automatically Rotating Screen】The Tint Meter can automatically rotate the screen while measuring different angles of the window, making it more convenient to read the value
✅【High Accuracy】This Window Tint Tester is designed with a large LCD, it can measure visible light wavelength from 380 to 760nm, with ±2% accuracy, 0.1% resolution

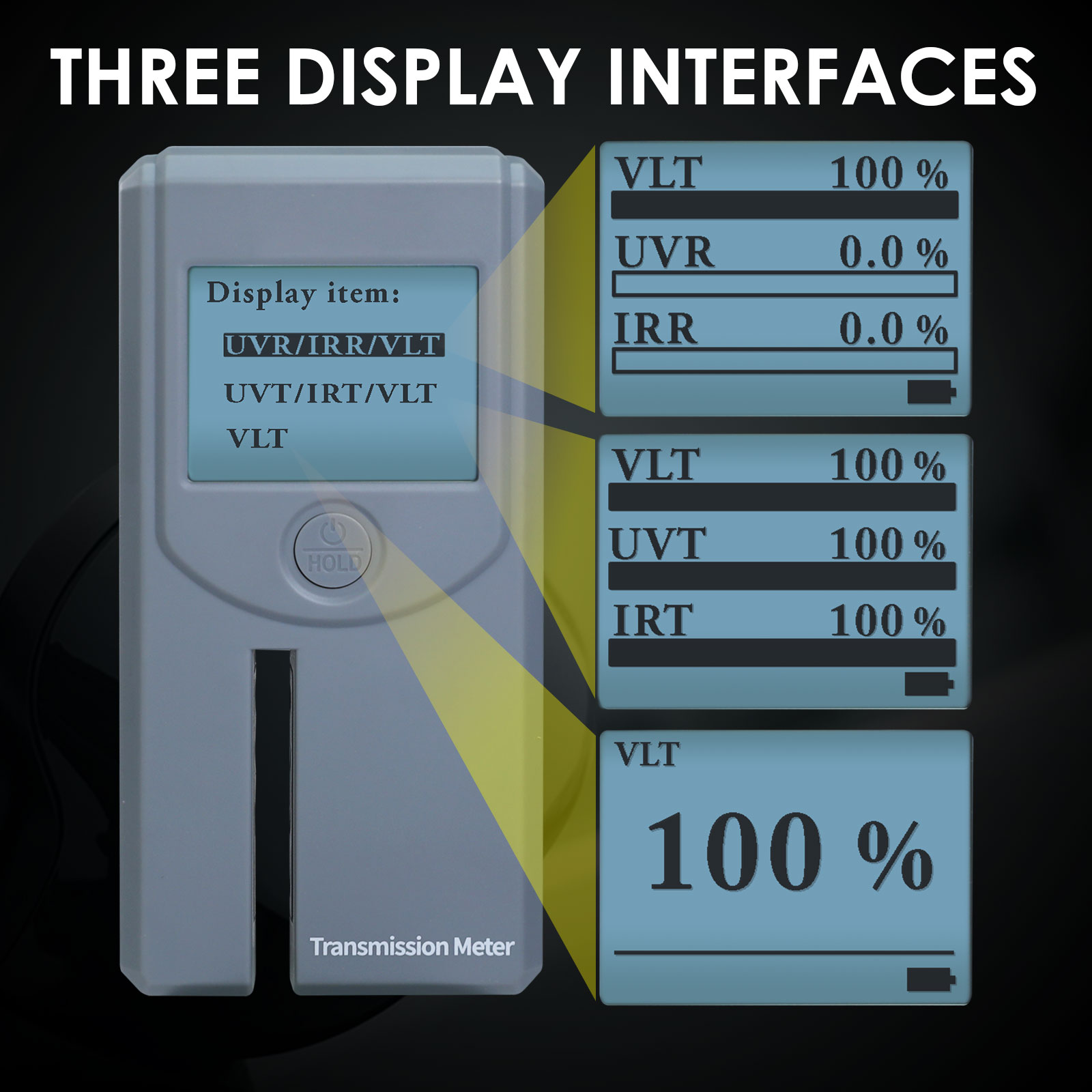

✅【Three Display Interfaces】DANOPLUS Window Tint Meter has 3 display modes: VLT(Visible Light Transmittance), UVR(UV Rejection), IRR(UV Rejection); VLT/UVT/IRT, and VLT mode, you may select your preferred mode manually
✅【Multi-Functional】The Tint Meter is automatically calibrated after power on, backlight design, and Low power alarm, Three display interfaces can be selected. (UVR/IRR/VLT, UVT/IRT/VLT and VLT), Simple operation
✅【Wide Applications】The Multi-functional Window Tint Meter is Applicable to solar film, car windows, stick-film glass, and other materials performance exhibition, production, quality inspection, and other occasions
Out of stock
There is no software available for this item.
FEATURES
- Multi-function meter – UV rejection/transmission measure, IR rejection/transmission measure, light transmittance measure
- Three display interface options are available: UVR/IRR/VLT, UVT/IRT/VLT, and VLT

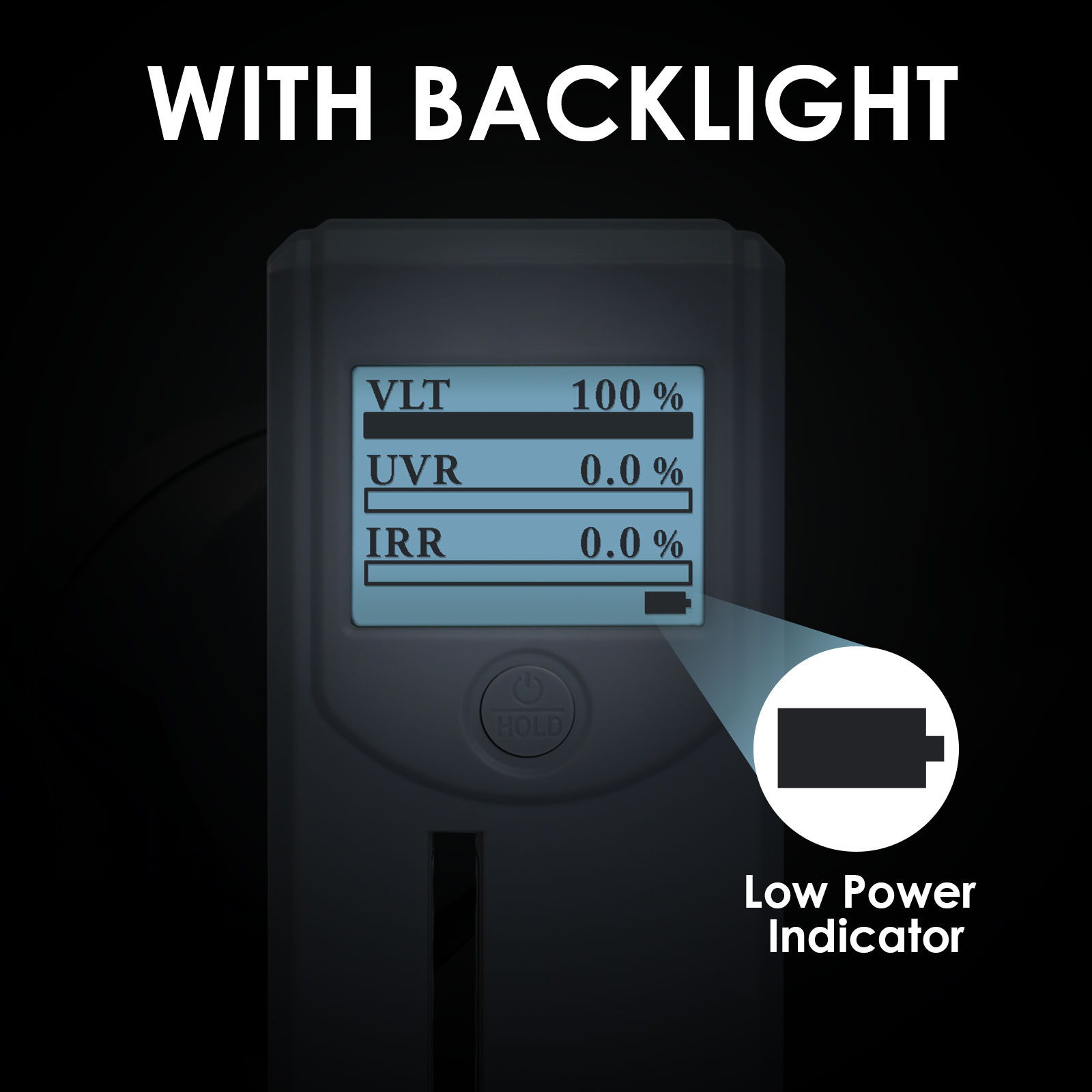

- LCD Dot matrix display with backlight function
- Always upright reading with a data hold function
- Real-time dynamic self-calibration function (automatic self-calibration after powering on)
- Low power consumption with low battery indicator- can maintain continuous measurement for more than 100 hours
- Auto and manual shutdown
- User friendly easy operation procedure
- Applicable to solar film, stick-film glass, and other materials performance exhibition, production, quality inspection, and other occasions

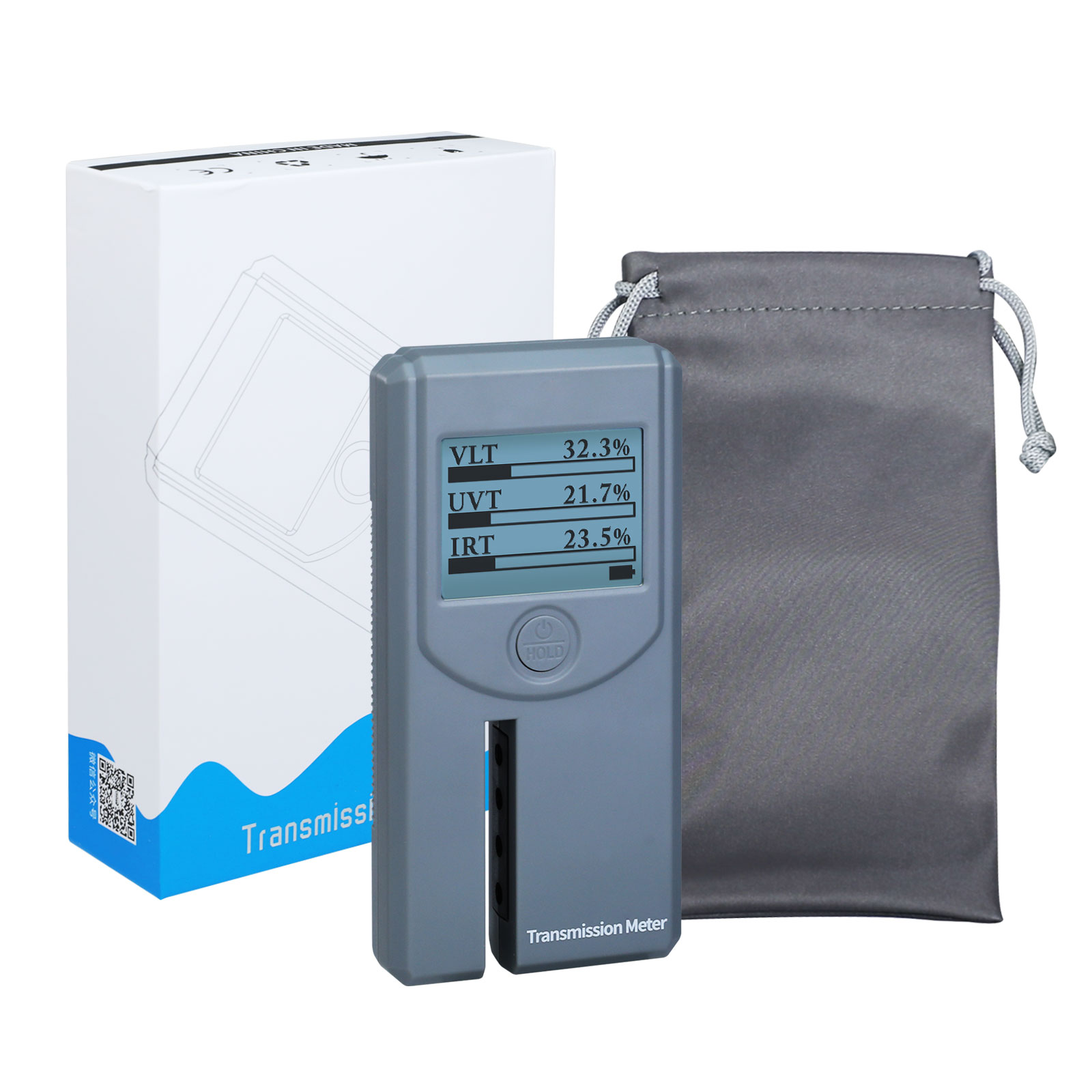

SET INCLUSIONS
- 1x Transmission Meter
- 4x AAA Alkaline Battery
- Eglish Instruction Manual
- Carrying Pouch
- Standard factory packaging
| Display | 128 x 128 Dot matrix LCD |
|---|---|
| UV Peak wavelength | 365nm |
| IR Peak wavelength | 940nm/ 1400nm |
| Visible light wavelength | Visible light wavelength |
| Accuracy | ±2% (Colorless and transparent material) |
| Resolution | Resolution |
| Test Slot | 6 x 58mm / 0.23 x 2.28in (W*D) |
| Power supply | 4x AAA alkaline battery |
| Dimesion | 146 x 73 x 24mm (5.75 x 2.87 x 0.94in) |
| Weight | approx. 187g (including batteries) |
There are no videos for this item.
2 reviews for DP-404 Tint Meter Portable Window Tint Meter Automatic Rotating Screen Window Tint Tester, Automatic Calibration, Measuring VL(Visible Light) UV IR Transmittance and Rejection of Windows, Solar Window Film
Only logged in customers who have purchased this product may leave a review.
Manny A. –
I used this window tint checker to measure numerous vehicles. It was super accurate. I even had a cop friend measure a window with his checker and it was the same. If you need to know how dark your tint is then this is the one to get!
James M. –
There are definitely more sophisticated tint meters on the market, but this is really a pretty solid device at the price point. The functionalities offered are impressive–down to a rotating screen which makes it easier to read in many situations. The LCD might not be the most visually pleasing display but it gets the job done. Ditto the UX. It has three display modes and it automatically calibrates itself. The product description promises ‘simple operation’ and they’re not kidding. This device combines functionality, accuracy and ease of use and delivers it at an impressive value price point. Highly recommended!
